WMP-24T-PIS-L

A lightweight medical-grade panel PC powered by Intel® 13th Gen Core™ processors, featuring a die-cast antibacterial aluminum housing. Designed for endoscope and medical device integration, it supports HDMI® video input, USB 3.0 or M.2 capture cards, RGB color adjustment, and IP54 protection with I/O cover. Built-in power supply options, OS recovery system, and BIOS watchdog ensure reliable operation in clinical environments.
WMP-24T-PIS-L
WMP-24T-PIS-L - Imagen 2
WMP-24T-PIS-L - Imagen 3
WMP-24T-PIS-L - Imagen 4
WMP-24T-PIS-L - Imagen 5
WMP-24T-PIS-L - Imagen 6
WMP-24T-PIS-L - Imagen 7
WMP-24T-PIS-L - Imagen 8
WMP-24T-PIS-L - Imagen 9

Características

  • Intel® 13th Gen. Core™ i 15W
  • Die-casting Anti-Bacteria Aluminum Housing
  • Light Weight Version (22” 7.8KG / 24” 8.6KG)
  • USB 3.0 or M.2 Capture Card for Endoscope Support
  • Video in to Connect the Video Output of Camera Control Unit
  • RGB color adjustment in video-in mode
  • Support HDMI® Interface to Integrate Medical Devices
  • Power Supply Inside for WMP-22T-PIS-L / 24T-PIS-L

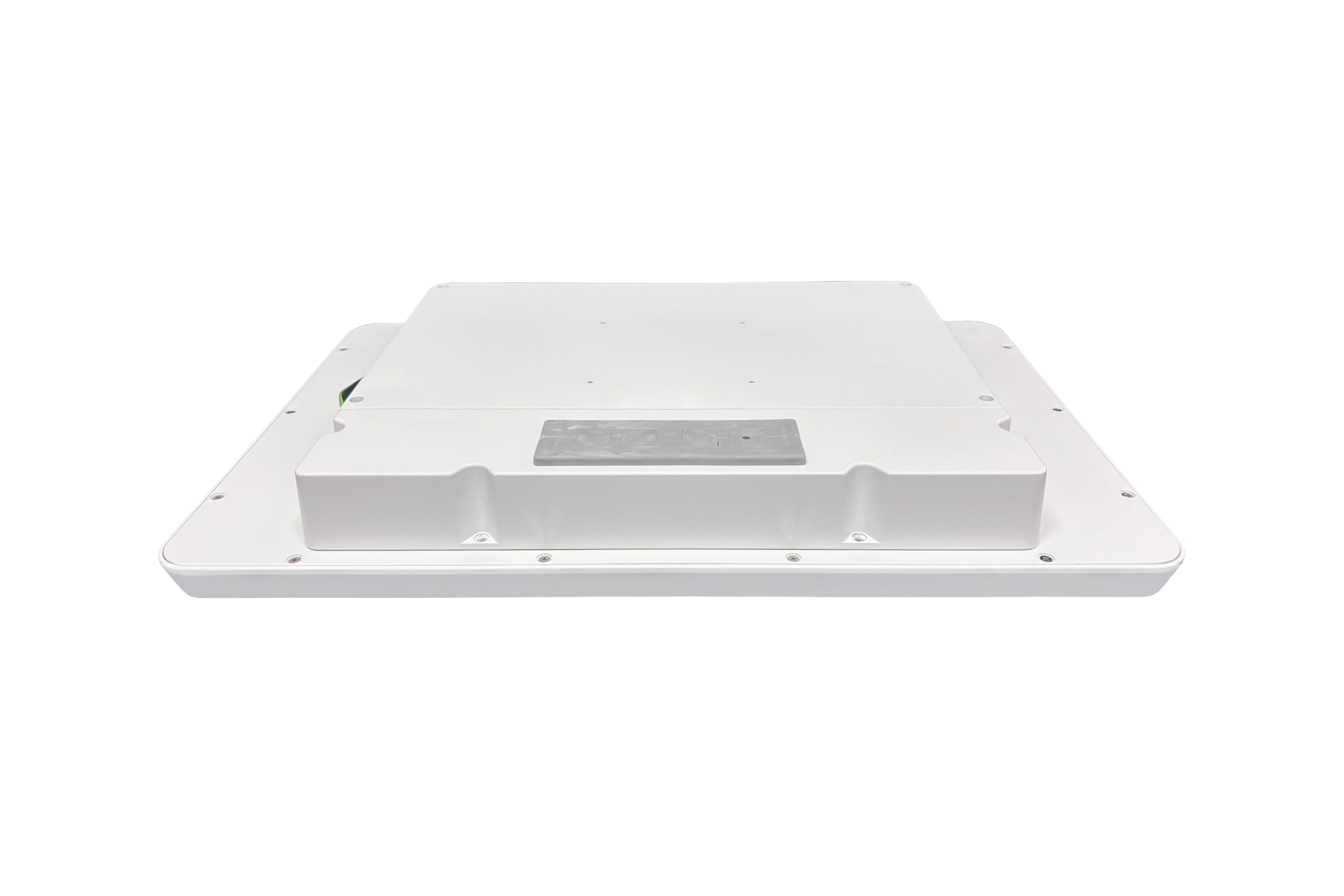

  • IP Rating Up to IP54 (With I/O cover)
  • Recovery System for OS
  • BIOS WDT function
Hoja de Datos
Documentos y Descargas
General
Model WMP-24T-PIS-L IP0N (STD) WMP-24T-PIS-L IP0N (ISO)
Main System
CPU / Chipset FCBGA1744 13th generation Intel® Core i7/i5/i3 and Celeron processor (15W max.)/ Soc
Graphic Intel® Iris Xe Graphics (i7/i5 CPU) / Intel® UHD Graphics (i3 CPU)
RAM Two 4800 MHz DDR5 SODIMM socket support dual Channel, non-ECC, up to 64GB
OS Support Optional Win 10 IoT Enterprise LTSC 64 bit, Windows 11 IoT Enterprise LTSC 64 bit
Storage 1 x M.2 (M Key, 2280) with PCIe x4 for SSD
Expansion 1x M.2 E key 2230,
Display Size 23.8” 16:9
Display 1920 x 1080 (Full HD), 16.7M colors, 178(H) / 178(V), 250 nits (Typ. Center point), CR:3000: 1 (Typ)
Touch Screen Full flat projective capacitive touch panel / Light Transmission: >88% / Hardness: 6H pencil, pressure 750g/45° / Life: ≥50,000 hrs

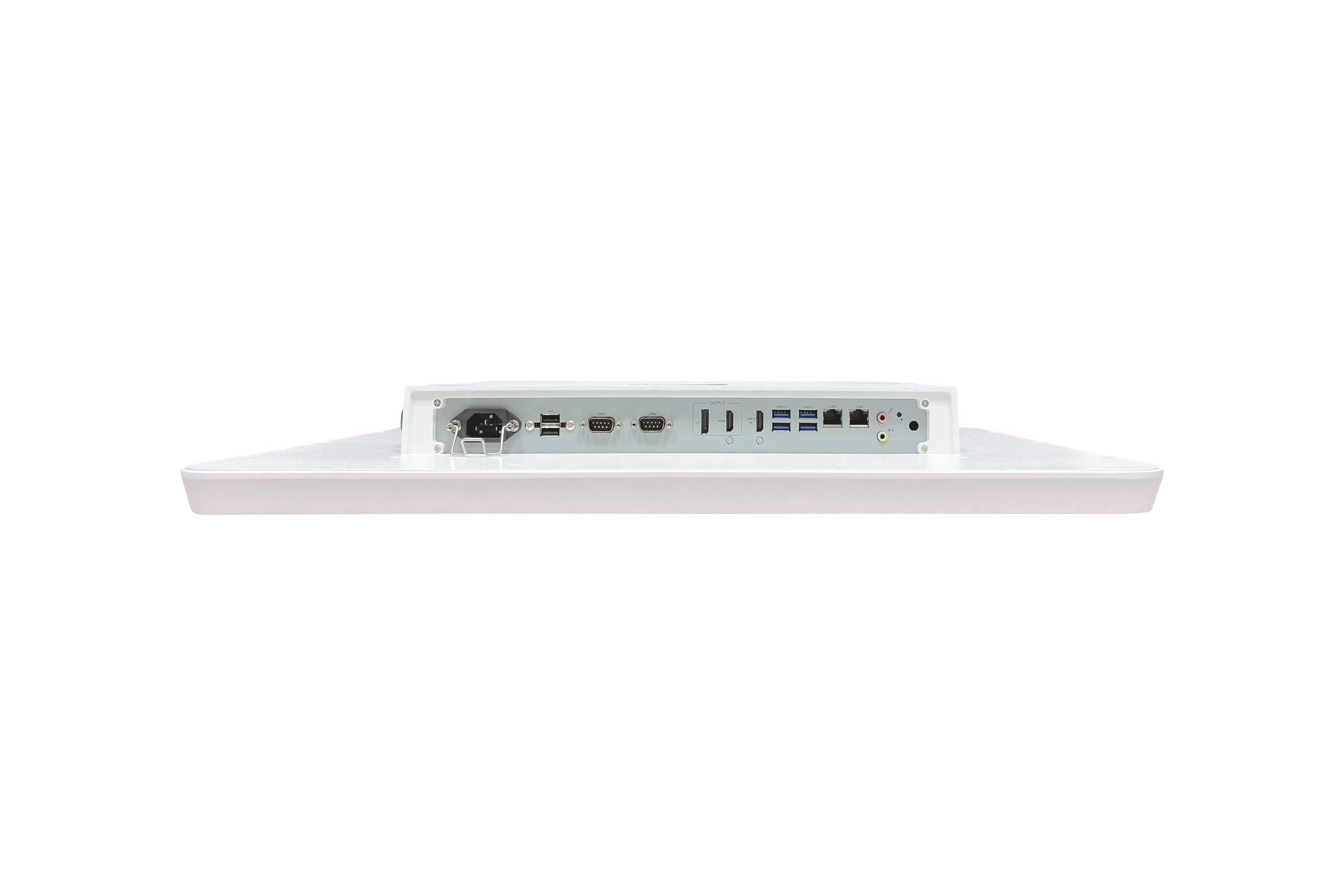

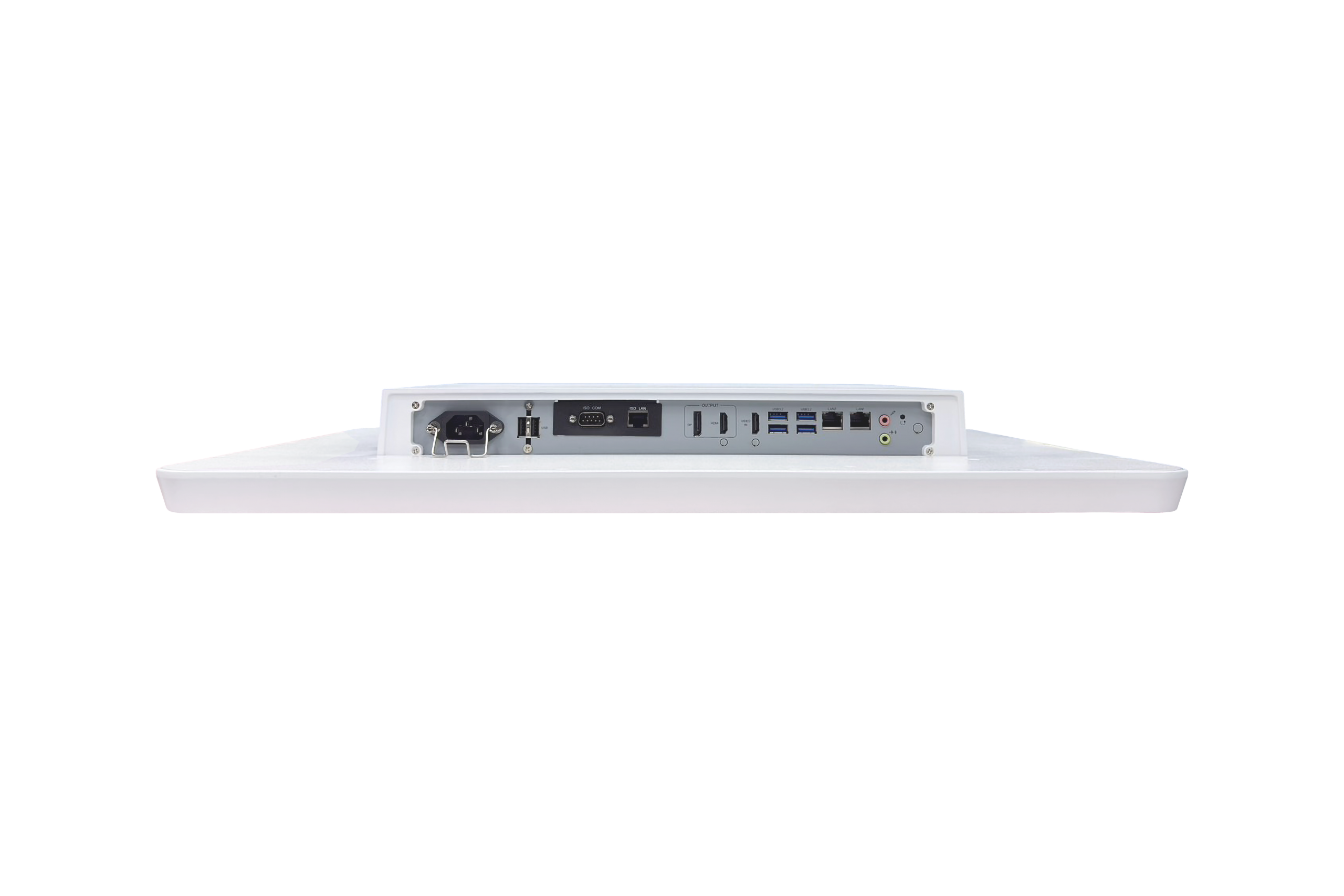

I.O. Ports
USB 4 x USB 3.2 2 x USB 2.0 4 x USB 3.2 2 x USB 2.0
COM 1 x RS232, 1 x RS232/RS422/RS485 1 x ISO RS232/RS422/RS485
LAN 1 x RJ45 1Gbps Intel® I219LM (AMT/Vpro) 1 x RJ45 2.5Gbps Intel® I226V 1 x RJ45 1Gbps Intel® I219LM (AMT/Vpro) 1 x RJ45 2.5Gbps Intel® I226V, 1 x ISO RJ45 1Gbps
Audio 2 x 3.5mm phone jack connector (Line-out, Mic-In), 2 x Waterproof 2W speaker
Video Out 1 x DP 1.4a/DP++, 1 x HDMI® 2.0b
Video In 1 x HDMI®-in (without audio); Support in S5 Mode

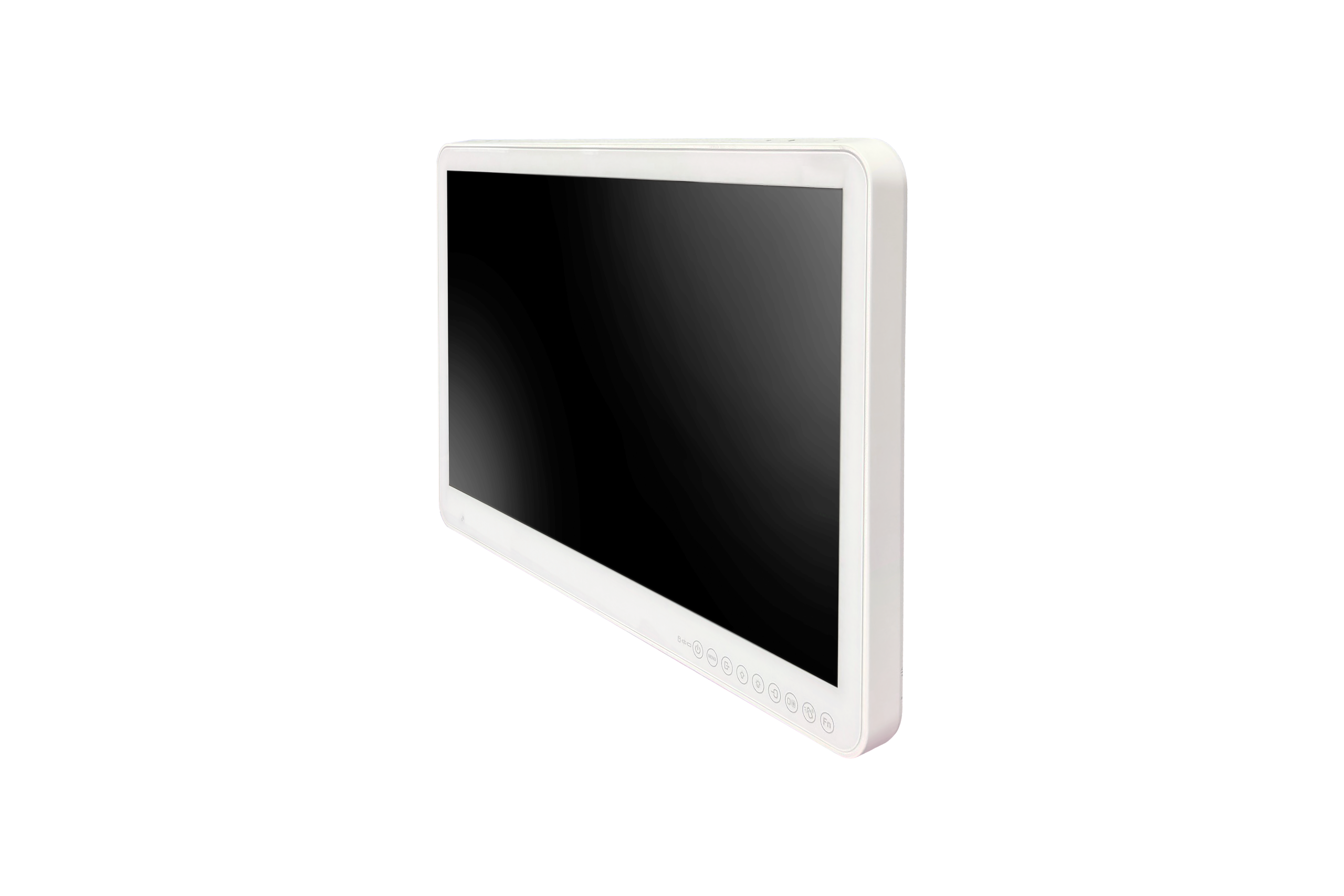

Control Hot Key (L to R) Battery LED Indicator; Power; Menu/Exit; Brightness; Video-In LCD On/Off; Clean Me; Programmable Function
Mechanical and Environmental
Cooling Fanless
Power Adapter AC input 100 ~240V / 47 ~ 63 Hz / DC output 24V 250W(MBU-250-108)
Temperature Operating Temperature: 0~35℃ (IEC60068-2-78) Storage Temperature: -20~60℃
Humidity Operating & Storage:10 ~ 90%, non-condensing
IP Rating Front: IP65, Rear: IP54 with optional cable cover attached
Housing Rear: Aluminum Alloy Body / White (Touch) / Bacteria resistant
Dimensions (Net) 586.5 mm (H) x 375.5 mm (V) x 68 mm (T)
Weights (Net) 8.6 kg

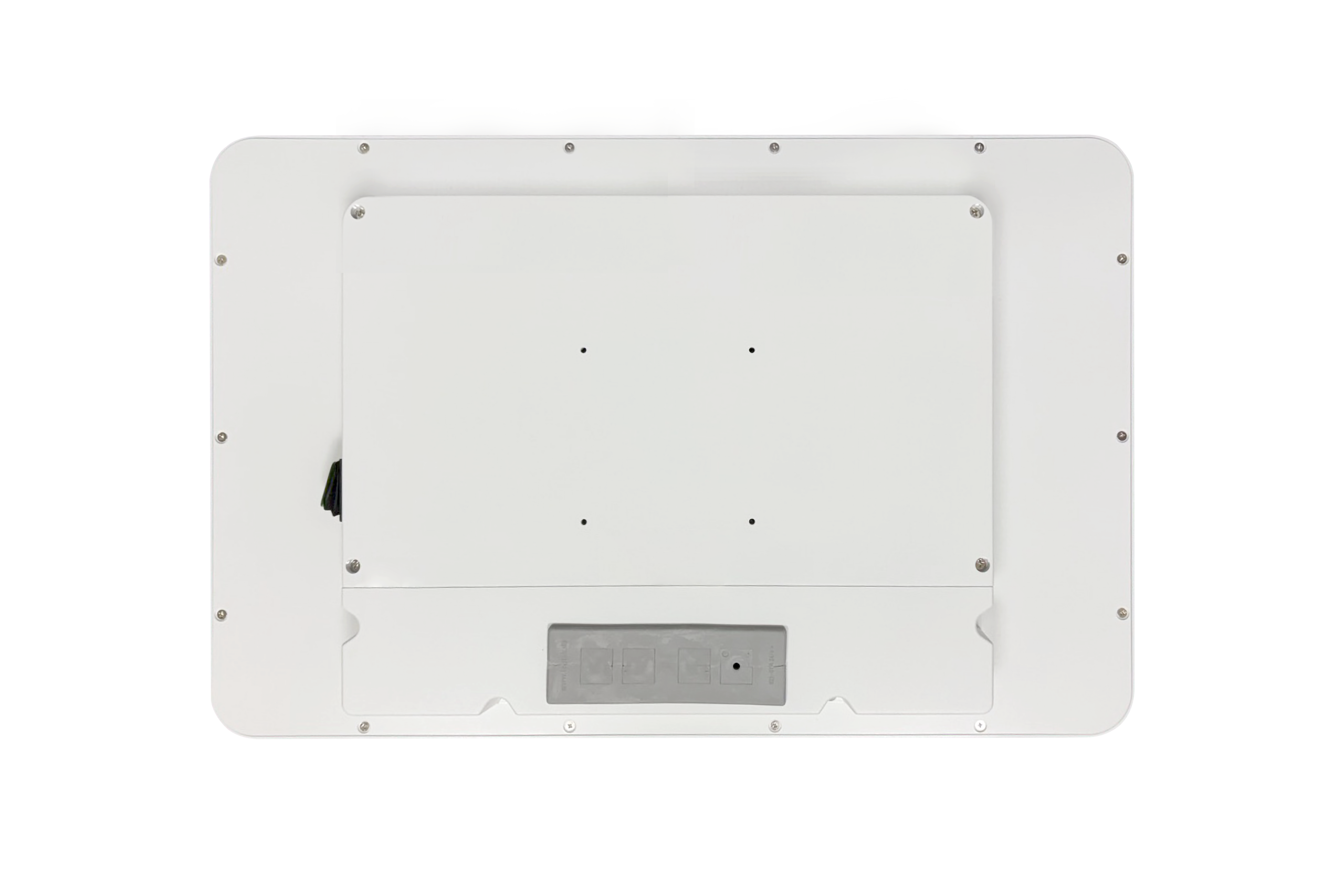

Mounting VESA 100 x 100
Certification
  • CE: EN 60601-1-2:2015 (V4.1)
  • EN 60601-1: 2006/A2:2021; IEC 60601-1:2005, IEC 60601-1:2005/AMD1:2012, IEC 60601-1:2005/AMD2:2020
  • VCCI: 2016-11, Class B
  • FCC: Part 18 Class B / ISO 14971
  • UL: AAMI ES60601-1:2005/(R)2012 and A1:2012/(R)2012 and A2:2021) (By project)
  • cUL: CAN/CSA-C22.2 No. 60601-1:14) (By project)
