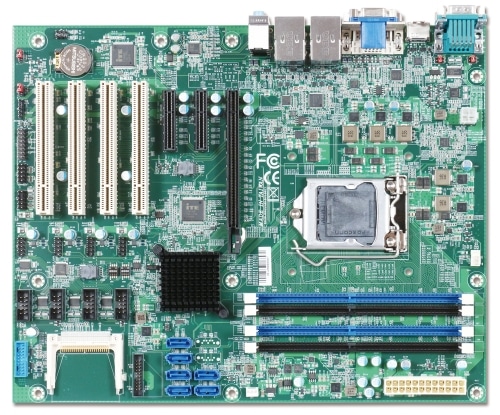

RUBY-D718VG2AR is based on Intel® Q170/ C236 chipset and desktop processor SKU like Intel® 7th and 6th Gen Core™ i3, i5 and i7 Processors. Built with PCI and PCIe expansions, it’s suitable for Medical, Industrial automation, and Digital Signage application.
| GENERAL | |
|---|---|
| Processor | Intel® 7th and 6th Gen Core™ Processors in LGA1151 package |
| Chipset | Intel® Q170 / C236 |
| BIOS | AMI UEFI BIOS (SPI ROM) |
| Memory | 4x DDR4 1866/2133 MT/s Long-DIMM up to 64GB non-ECC memory |
| Storage Devices | 6x SATA III ports (C236 Supports 8x SATAIII ports) |
| Watchdog Timer | Programmable by embedded controller |
| Hardware Monitoring | System monitor voltage, fan speed, and temperature |
| Expansion Interface |
|
| I/O INTERFACE | |
|---|---|
| Super I/O | N/A |
| Audio |
|
| Ethernet |
|
| Serial Port |
|
| USB |
|
| Keyboard & Mouse | PS/2 Keyboard & Mouse Pin Header |
| GPIO | 8-bit configurable controlled by embedded controller |
| Other | Option TPM module with LPC pin header |
| DISPLAY | |
|---|---|
| Graphic Controller | Intel® Gen 9 graphic engine supports DirectX 12, OpenGL 4.4 |
| Display Interface |
|
| MECHANICAL & ENVIRONMENT | |
|---|---|
| Dimension | 304.8mm(L) x 243.8mm(W) |
| Power Supply | 24-pin ATX power input |
| Environment |
|
| Certification | CE, FCC Class A |
| MTBF | Over 120,000 hours at 40°C |
| AB1-3D29 | (R).RUBY-D718VG2AR ATX.IMB.LGA1151.CPU.Q170.DDR4/VGA/ HDMI®/DVI/Dual GbE/COM/Audio/USB |
| AB1-3D77 | (R).RUBY-D718VG2AR-C236 ATX.IMB.LGA1151.CPU.C236.DDR4/VGA/ HDMI®/DVI/Dual GbE/COM/Audio/USB |
| AB1-3G14 | (R).RUBY-D718VG2AR-KBL ATX.IMB.LGA1151.CPU.Q170.DDR4/VGA/ HDMI®/DVI/Dual GbE/COM/Audio/USB |
| AB1-3G15 | (R).RUBY-D718VG2AR-C236-KBL ATX.IMB.LGA1151.CPU.C236.DDR4/VGA/ HDMI®/DVI/Dual GbE/COM/Audio/USB |
| One RUBY-D718VG2AR ATX Industrial Main Board |
| One Installation DVD |
| One SATA III cable |
| One I/O shield |
