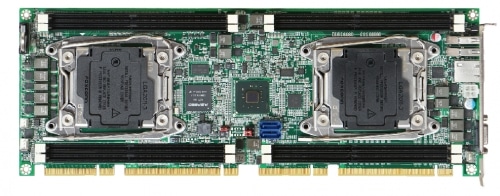

ROBO-8122VG2R is based on Intel® C612 chipset and dual Xeon® processors. It’s a server grade SHB. Build with high conputing power and PCI express expension support, it’s suitable for Military, industrial automation, networking, Medical and Digital Signage applications.
| MODEL | ROBO-8122VG2R |
| Form Factor | Non-Standard PICMG 1.3 |
| CPU | Dual Intel® E5-2600Lv3series (under 75W per CPU) |
| Chipset | Intel® C612 |
| BIOS | AMI UEFI |
| Memory | 8 x DDR4 REG DIMM up to 256GB |
| Expansion | Per CPU 1 x PCIe x16 slot or 2x PCIe x8 slot or 4x PCIe x4 slot PCH: 1x PCIe x4 slot or 4x PCIe x1 |
| Display | VGA |
| Audio | – |
| LAN | 2x GbE (one on board, the other on BP) |
| Serial Port | 2x GbE (one on board, the other on BP) |
| USB | 2x USB 3.0 4x USB 2.0 |
| Storage Devices | 4x SATA III |
| GPIO | – |
| Others | – |
| Dimension | 338.5 x 126.39mm |
| AB1-3D44 | (R).ROBO-8122VG2R PICMG 1.3(PCI-E).LGA2011. Dual Intel® Haswell-EP processor with eight DDR4 REG DIMM sockets.SHB.w/VGA/GbE/SATA III/USB 3.0 ports |
| Standard | B6902932 SATA III cable |
| B8981980 PICMG SBC Handling and Installation Notice | |
| B8983670 Installation CD | |
| Optional | B9971490 CPU cooler for single processor(for 4U system) |
| B9971510 CPU cooler for single processor(for 2U system) |
