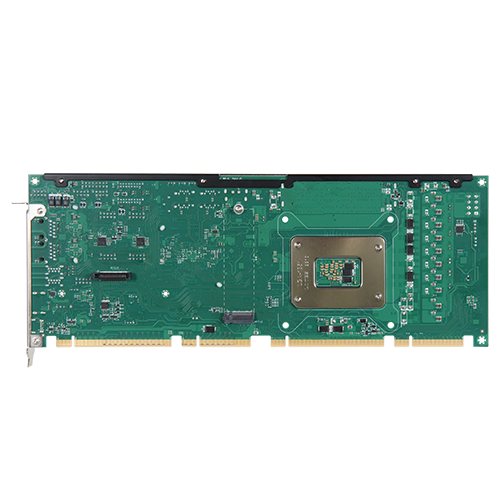

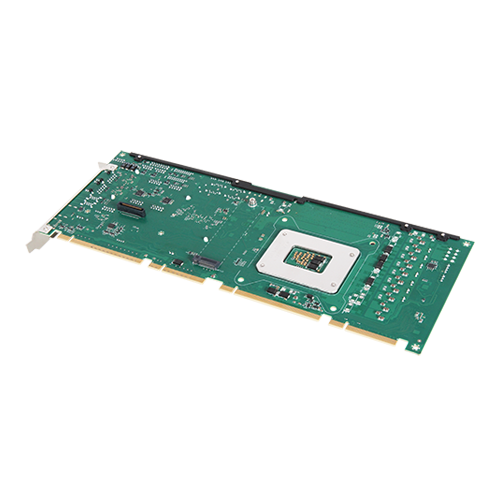

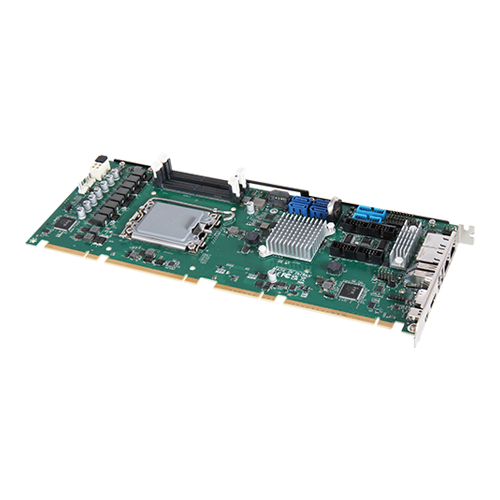

ROBO-8117G2AR-Q870

Intel® Core™ Ultra Series; 2x DDR5 6400 ECC SO-DIMM to 96GB; 2.5GbE; 6x USB 3.2 Gen2; mini-DP, 2x HDMI®

Características

  • Support Intel® Core™ Ultra Series processors in LGA1851 package
  • Delivers up to 96GB maximum DDR5 6400 ECC SO-DIMM on two sockets
  • Supports multiple display by mini-DP and dual HDMI®
    High speed dual 2.5Gigabit Ethernet based on PCI express x 1, high bandwidth I/O interface
    Support two USB 3.2 Gen2 on REAR I/O
General
Processor Intel® Core™ Ultra Processors (Series 2), LGA 1851 socket, 65W TDP
Chipset Intel® Q870
BIOS AMI uEFI BIOS
Memory Support up to 96GB DDR5 6400 MT/s on 2 SODIMM
Storage 6 x SATA Ports Support RAID 0, 1, 5, 10
Watchdog Timer Programmable, time out period from 1 s to 255 s
Graphic Controller Intel® Xe LPG Graphics OpenGL 4.5

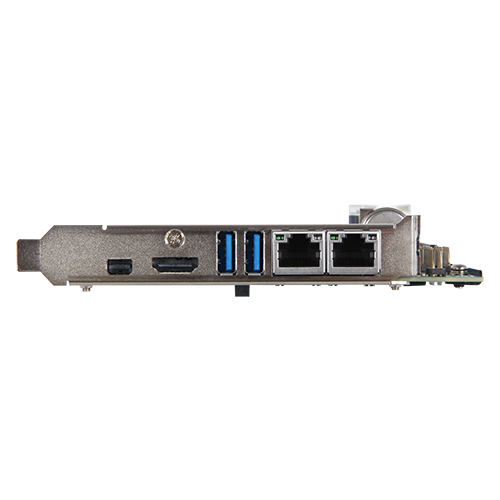

Rear I/O
Ethernet 2 x Intel® I226LM with 2.5 GbE LAN 10/100/1000/2500 Mbps
USB 2 x USB 3.2 Gen2 Type A
Display 1 x Mini-DP 7680 × 4320@60Hz
1 x HDMI® 2.1 4096 x 2160@60Hz
1 x HDMI® 2.1 4096 x 2160@60Hz
Expansion I/O
PCIe 1 x PCIe Gen5 x16 ( 1 x16 mode, 2 x8 mode )
1 x PCIe Gen4 x4
1 x PCIe Gen4 x4
PCI 4 x PCI 33 MHz
Audio 1 x Pin Header support Line-in , Line-out , Mic-in w/ Realtek ALC888
Serial Port 2 x Pin Header support RS-232
2 x Pin Header support RS-232/422/485
USB 8 x USB 2.0 Pin Header
2 x USB 3.2 Gen2 Pin Header
2 x USB 3.2 Gen2 Vertical Type A
M.2 1 x M.2 M Key 2280 support
Security TPM 2.0 ( On Board IC )
GPIO 1 x 8-bit Digital I/Os
ME/Environment
Dimension 339 x 126 mm (13.33″ x 4.98″)
Power Supply AT mode/ ATX mode 12V
Operating Temperature 0 ~ 60 °C (32.0 ~ 140.0 °F)
Storage Temperature -40 ~ 85 °C (-40.0 ~ 185.0 °F)
Relative Humidity 5% to 95%, non-condensing
Certification CE/FCC UKCA
OS Windows 10 IoT Enterprise 2021 LTSC, Windows 11 IoT Enterprise 2024 LTSC, RedHat Enterprise, Ubuntu 24.04, Ubuntu 22.04, Linux Kernel 6.6.23
Portwell Special Feature PET
Category Product P/N Description
PICMG 1.3 Full-Size ROBO-8117G2AR-Q870 AB1-3T08
