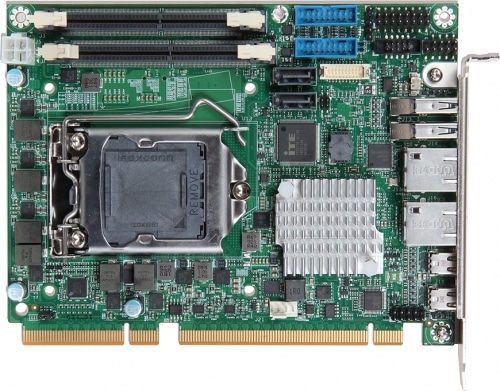

ROBO-6912VG2AR-Q370 is based on Intel ® Q370 chipset to support Intel ® Core™ i3/i5/i7 processors. Built with flexible PCI express expansions, ROBO-6912VG2AR-Q370 is suitable for Medical, Industrial automation, and Digital Signage application
| MODEL | ROBO-6912VG2AR-Q370 |
| Form Factor | PICMG1.3 |
| CPU | Intel® Core™ i3/i5/i7/i9/ Pentium®/ Celeron® |
| Chipset | Intel® Q370 |
| BIOS | AMI UEFI |
| Memory | 2 x DDR4 non- ECC SO-DIMM up to 32GB |
| Expansion | 1x PCIe x16 slot or 2x PCIe x8 slots or 1x PCIe x8 slot 2x PCIe x4 slots 1x PCIe x4 slot |
| Display | 2x mini DP / DVI-D |
| Audio | Realtek ALC888S HDA codec |
| LAN | 2x GbE |
| Serial Port | 1x RS-232/422/485 |
| USB | 4x USB3.2 Gen1 2x USB3.2 Gen2 |
| Storage Devices | 2x SATA III 1x mSATA |
| GPIO | 8 bit |
| Others | N/A |
| Dimension | 167.64 x 126.39mm |
| AB1-3J42Z | (R).ROBO-6912VG2AR-Q370 PICMG 1.3(PCI-E+PCI).LGA1151. Q370 PCH. Intel® Core™ i5/i7 processors.SHB. w/ DVI-D/miniDP*2/Dual GbE/Audio/USB 3.1/ COM |
| Standard | B8981980 PICMG SBC Handling and Installation Notice |
| B6902932 SATA III cable | |
| B8983650 Installation CD | |
| Optional | B6902230 USB port cable with bracket |
| B6903090 USB 3.0 cable with bracket |
