PVM-R1010-J6412

Panel PC para vehículos ferroviarios IP65 con pantalla TFT-LCD de 10,4” y procesador Intel® Celeron® J6412

Características

  • Panel PC táctil de 10.4” con tecnología resistiva o capacitiva proyectada, equipado con Intel® Celeron® J6412 (4 núcleos, 2,0 GHz)
  • 4 GB DDR4-2666 SO-DIMM (ampliable hasta 32 GB) y SSD M.2 de 128 GB (ampliable hasta 2 TB)
  • 1 x Ethernet Gigabit, 2 x USB 2.0, 2 x RS-232 y 1 x entrada/salida de audio puertos M12
  • Diseño sin ventilador (fanless) con certificación IP65, totalmente resistente al agua y al polvo
  • Entrada de alimentación de amplio rango 8 V ~ 36 VDC, con control de encendido por ignición
Especificación
Pantalla LCD Type & Size TFT LCD 10.4 inch (4:3)
Touch Type Projected capacitive multi touch (default)
Resolution 1024 x 768
Brightness 600 nits
Contrast Ratio 1000:1
View Angles 80, 80, 80, 80
General Processor Intel® Celeron® J6412 (quad cores, 2.0GHz)
BIOS AMI uEFI BIOS
Memory 1x DDR4-2666 SO-DIMM 4GB (up to 32GB)
Storage 1x M.2 SSD 128GB (up to 2TB)
Graphics Intel® Iris® Xe Graphics

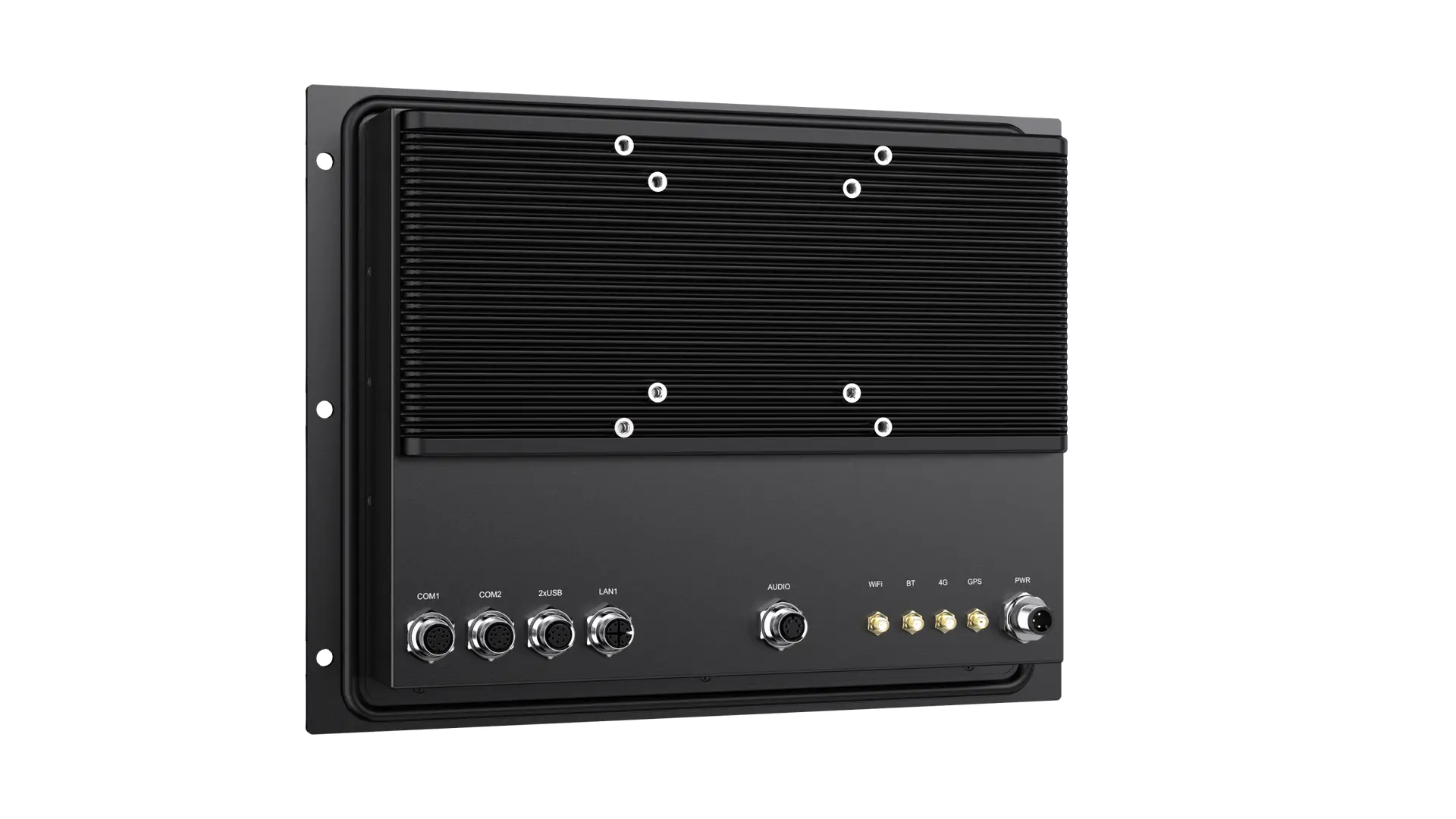

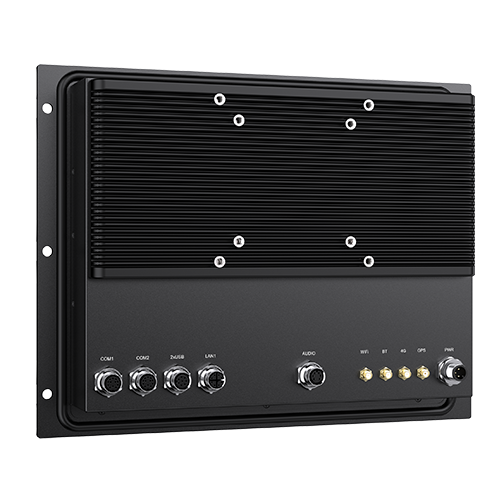

I/O Trasero Ethernet 1x GbE M12 LAN ports
USB 2x USB 2.0 M12 ports
Serial Port 2x M12 RS-232 COM ports
Audio 1x M12 Audio in/out port
Antenna 4x SMA connector for external antenna

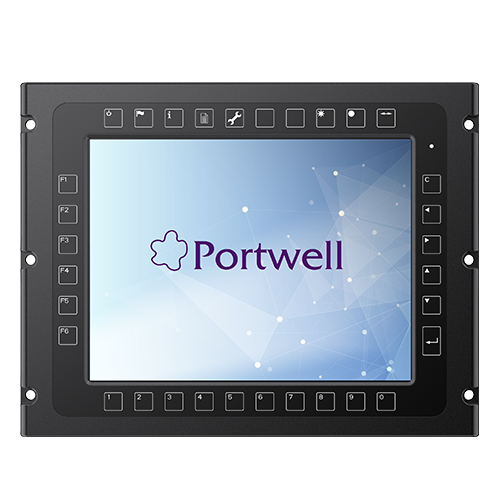

I/O Frontal Keypad
  • Power button and other function keys (top)
  • Direction Moving with Enter and Clear keys
  • 0 ~ 9 numeric keys
  • F1 ~ F6 function keys for user defined
Mecánica / Entorno Dimension 305 x 236 x 66 mm (12.01” x 9.29” x 2.60”)
Weight 3.21 kg (7.08 lbs)
Power 8 ~ 36VDC ATX with 25W power consumption
Mounting VESA Mount, Panel Mount
Vibration MIL-STD-810H Method 516.8 Procedure I
Shock MIL-STD-810H Method 514.8 Procedure I
IP Protection IP65 compliant (Front panel)
Operating Temperature -30 to 60°C ( -22.0 to 140.0°F)
Storage Temperature -40 to 70°C ( -40.0 to 158.0°F)
Relative Humidity 95% @70°C (158.0°F), non-condensing
Certification (EMC) CE/FCC
OS Windows 10/11/IoT Enterprise LTSC / Ubuntu
Función RF Wi-Fi 802.11a/b/g/n/ac, support 6GHz and OFDMA
Bluetooth Bluetooth 5.3 / Bluetooth 5.4
GNSS GPS, GLONASS, Galileo, BeiDou (u-blox NEO-M8N, optional)
Cellular 4G (default), LTE (optional)
SIM 1x SIM slot
