| Pantalla |
LCD Type & Size |
TFT LCD 10.1 inch (16:10) |
|
Touch Type |
Projected capacitive multi touch (default) |
|
Resolution |
1920 x 1200 |
|
Brightness |
1000 nits |
|
Contrast Ratio |
1000:1 |
|
View Angles |
85, 85, 85, 85 |
| General |
Processor |
Intel® Core i5-1235U (10 cores, up to 4.4GHz) |
|
BIOS |
AMI uEFI BIOS |
|
Memory |
1x DDR4-2666 SO-DIMM 8GB (up to 32GB) |
|
Storage |
1x M.2 SSD 256GB (up to 2TB) |
|
Graphics |
Intel® Iris® Xe Graphics |

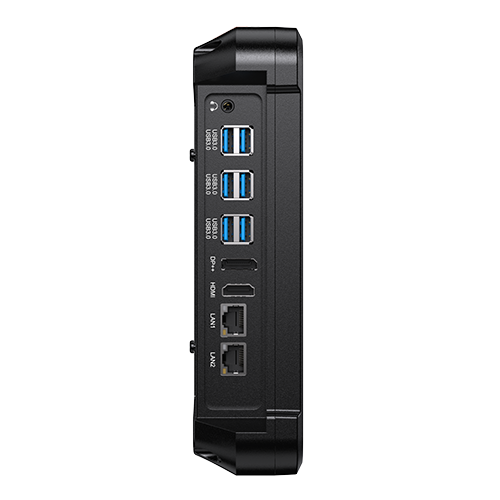

| I/O Trasero |
Ethernet |
2x GbE RJ45 LAN ports |
|
USB |
6x USB 3.0 Type A |
|
Display |
1x HDMI® (Type A) & 1x DP++ (Type A) |
|
Serial Port |
2x DB9 RS-232 COM ports |
|
Audio |
3.5mm Audio Jack (Mic-in/Line-out) |
|

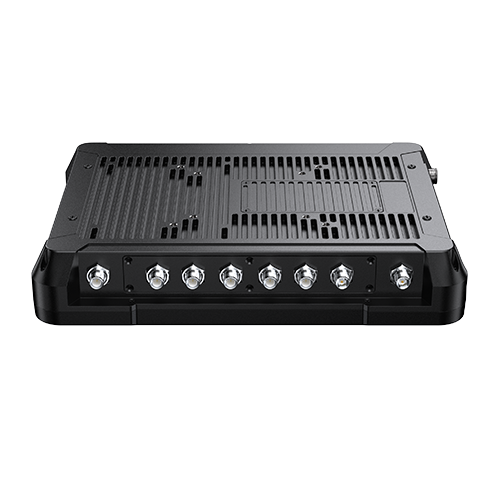

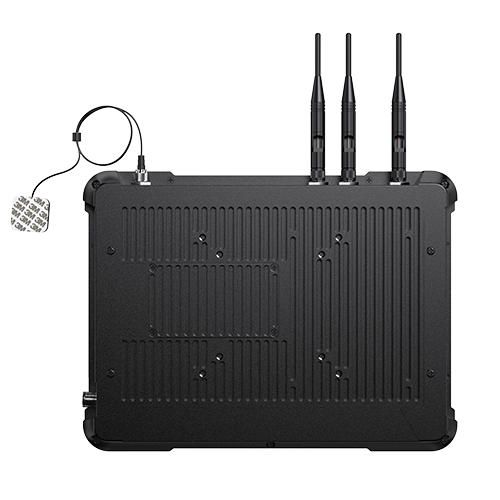

Antenna |
2 ~ 8x TNC connectors for external antenna |
| I/O Frontal |
Keypad |
- Power button with LED indicator
- Adjustment for brightness and volume
- F1 ~ F6 function keys for user defined
|
|
Speaker |
2x studio speakers (8Ω/2W) |
| Mecánica / Entorno |
Dimension |
280 x 211 x 51 mm (11.02” x 8.31” x 2.01”) |
|
Weight |
2.42 kg (5.34 lbs) |
|
Power |
8 ~ 36VDC ATX with 25W power consumption |
|
Mounting |
VESA Mount (75*75 / 100*100) |
|
Vibration |
MIL-STD-810H Method 516.8 Procedure I |
|
Shock |
MIL-STD-810H Method 514.8 Procedure I |
|
IP Protection |
IP66 compliant (with REAR I/O cover closed) |
|
Operating Temperature |
-30 to 60°C ( -22.0 to 140.0°F) |
|
Storage Temperature |
-40 to 70°C ( -40.0 to 158.0°F) |
|
Relative Humidity |
95% @70°C (158.0°F), non-condensing |
|
Certification |
(EMC) CE/FCC |
|
OS |
Windows Pro 10/11/IoT Enterprise LTSC |
| Función RF |
Wi-Fi |
802.11a/b/g/n/ac, support 6GHz and OFDMA |
|
Bluetooth |
Bluetooth 5.3 / Bluetooth 5.4 |
|
GNSS |
GPS, GLONASS, Galileo, BeiDou (u-blox NEO-M8N, optional) |
|
Cellular |
4G (default), LTE, 5G, NSA/SA (optional) |
|
SIM |
1x SIM slot |
