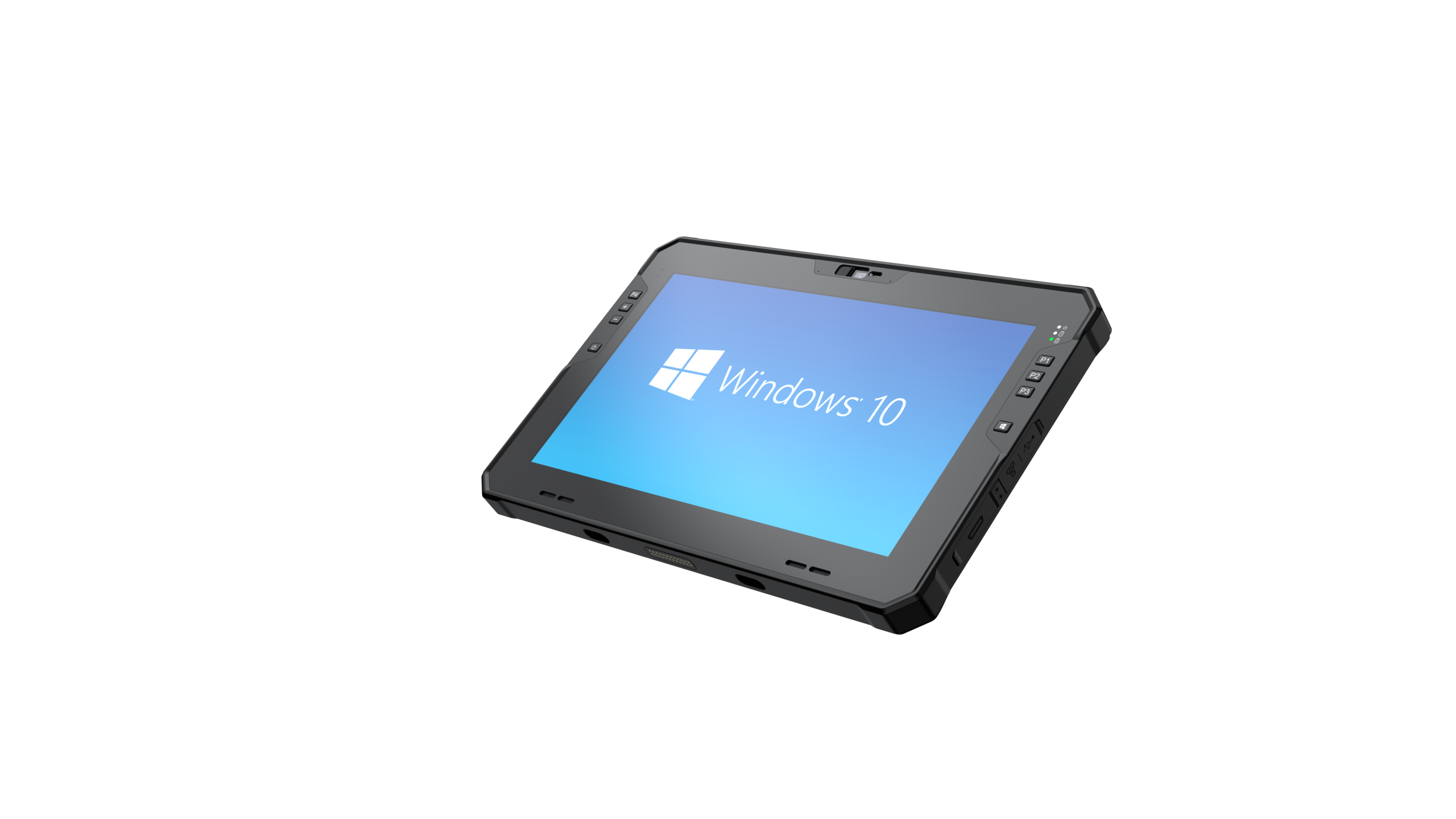

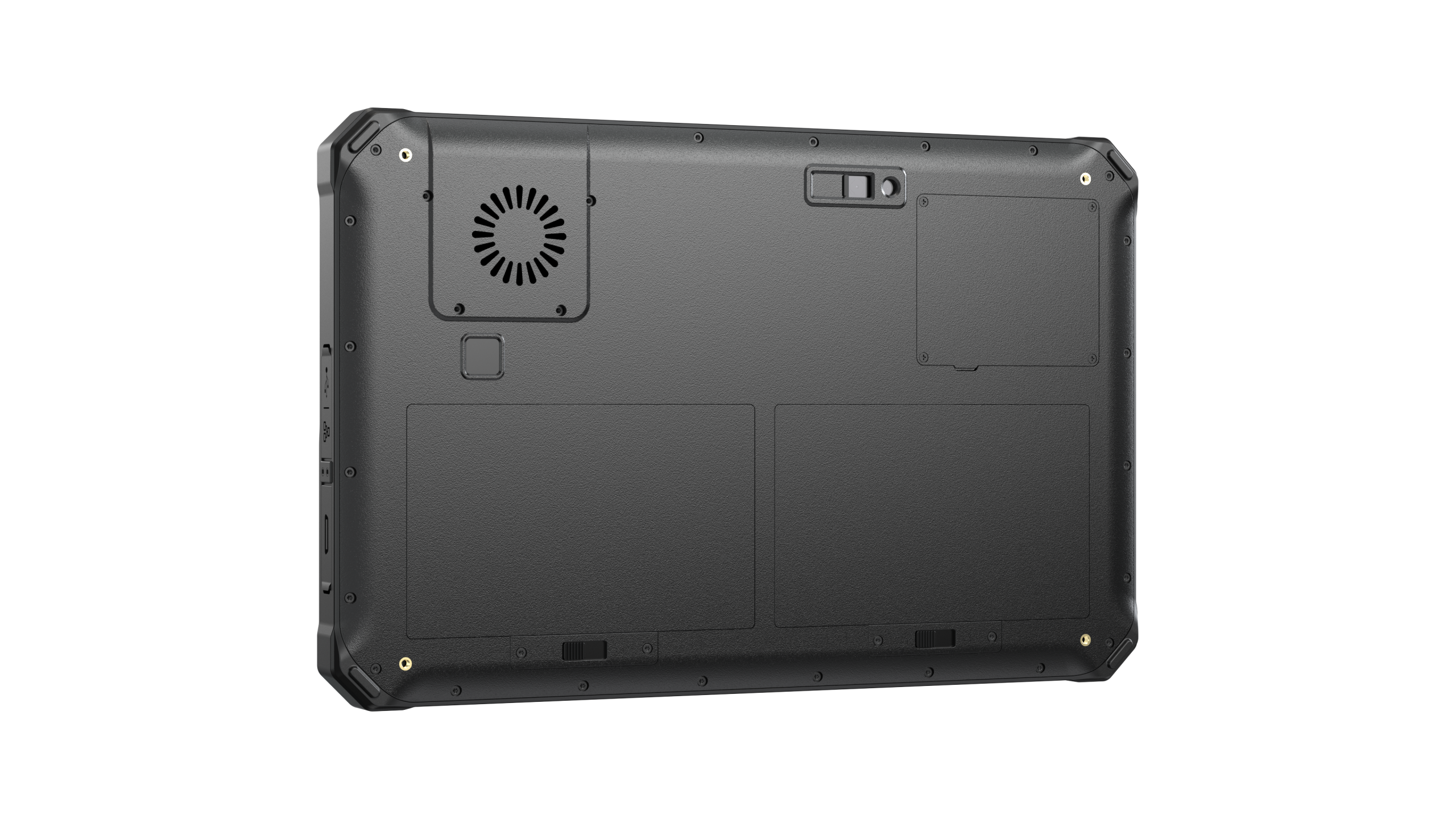

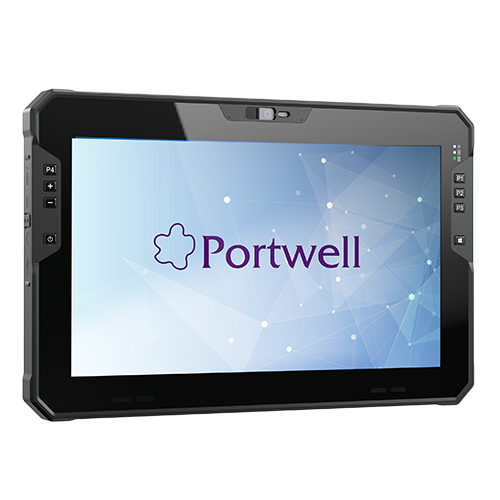

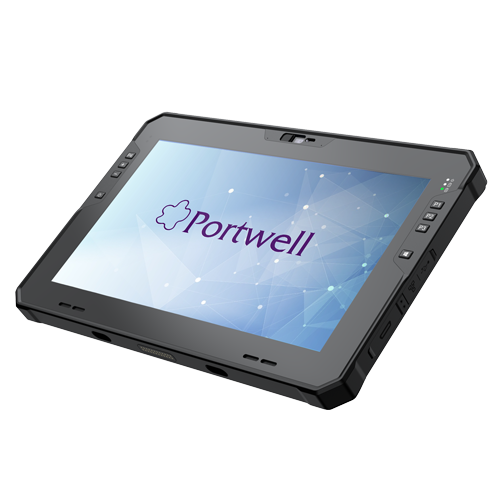

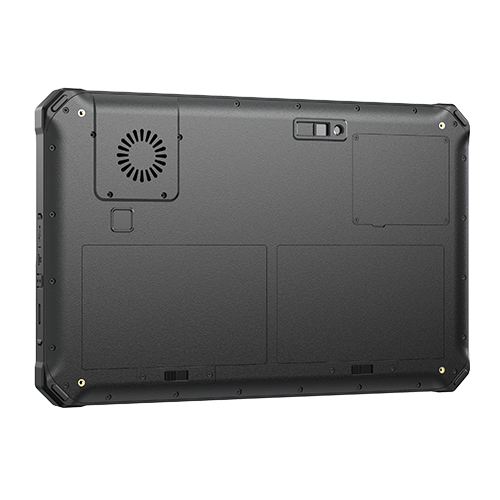

PRT-T1130-ADL

IP66 Rugged Tablet with 11.6” FHD and Intel® 12th Gen Core-i5/i7 Processo

Características

  • 11.6″ G+G Capacitive multi-touch tablet
  • Intel® Core i5-1235U/i7-1255U processor with 16GB LPDDR5 (up to 32GB) and 256GB NVMe PCIe SSD (up to 1TB)
  • 1x RJ45 GbE LAN, 2x USB 2.0 Type A and 1x USB Type C
  • Support 4G, Wi-Fi, Bluetooth and GNSS
  • Fanless IP66 and MIL-STD-810H with waterproof and dustproof protection
  • Dual swappable high-capacity battery
Especificación
Pantalla LCD Type & Size FHD 11.6 inch
Touch Type G+G Capacitive multi-touch
Resolution 1920 x 1080
Brightness 1000 nits
Contrast Ratio 1000:1
View Angles 85, 85, 85, 85
General Processor Intel® Core i5-1235U/i7-1255U
Memory LPDDR5 16GB (up to 32GB)
Storage NVMe PCIe SSD 256GB (up to 1TB)
Camera Front 5MP fixedfocus + Rear 13MP autofocus

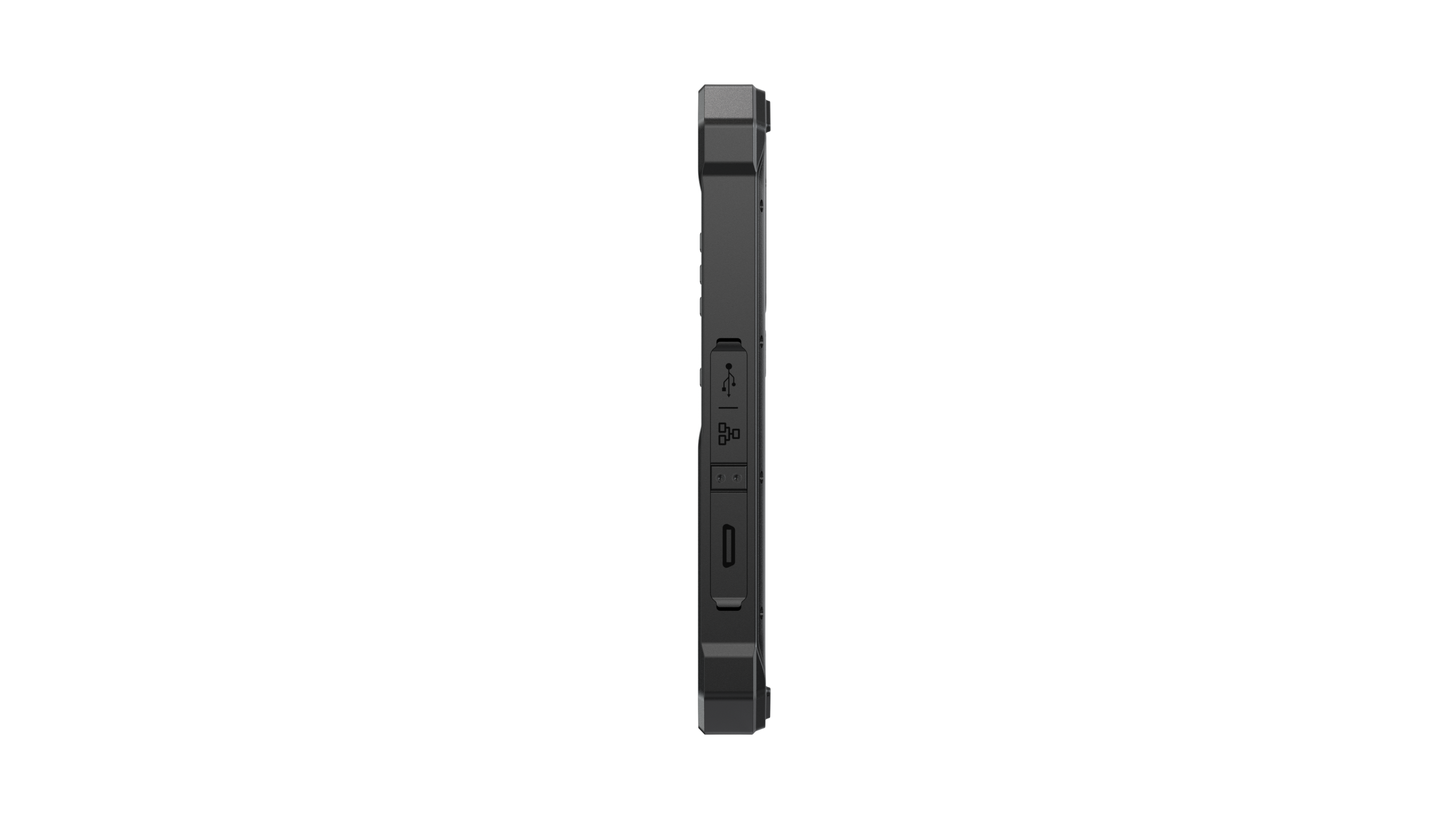

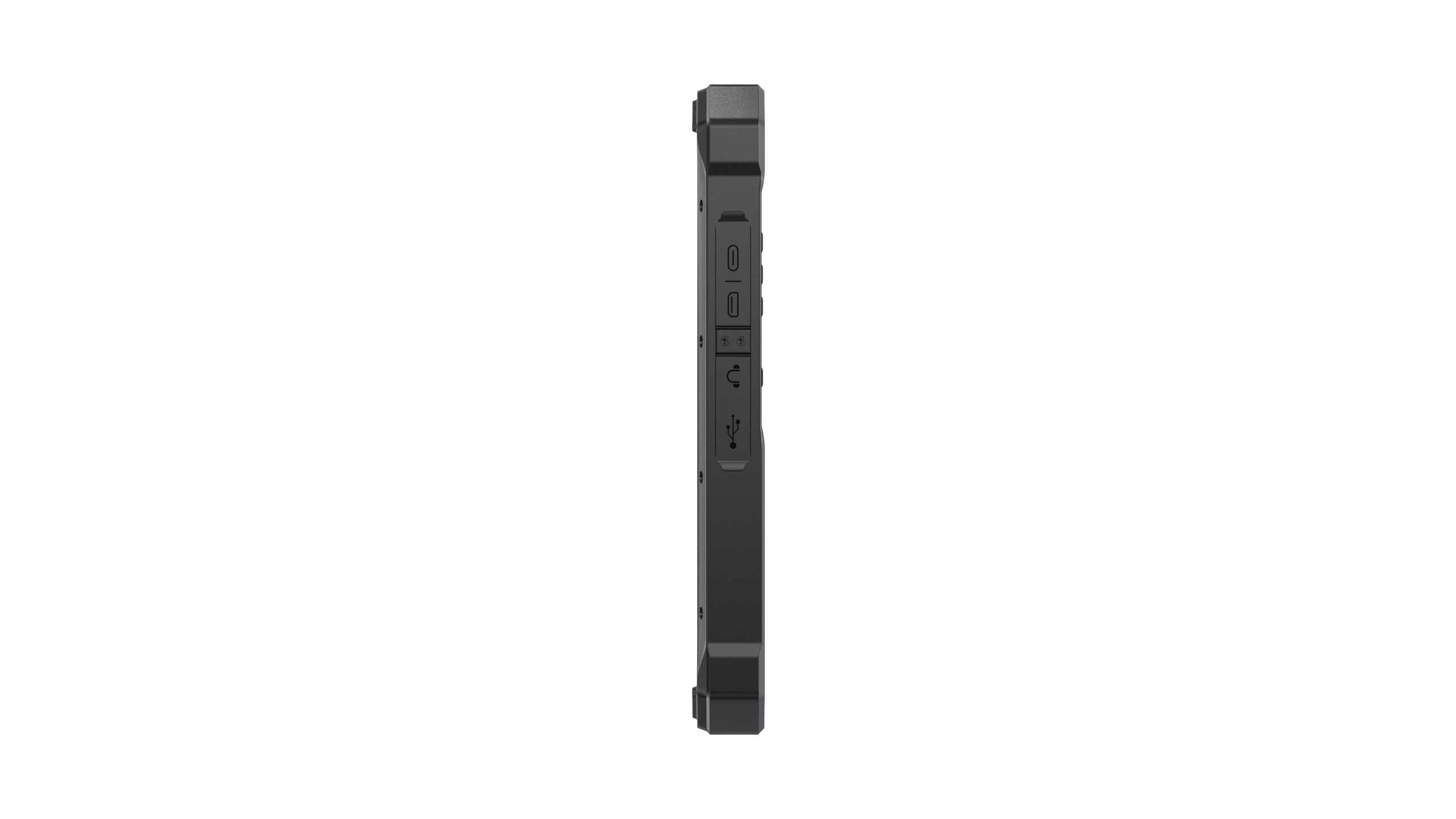

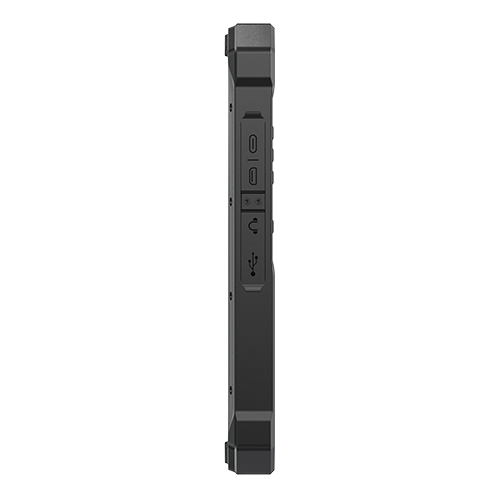

Puertos de E/S Ethernet 1x RJ45 10/100/1000Mbps LAN port
USB 2x USB 2.0 Type A + 1x USB Type C
Display 1x Mini HDMI®
Serial Port (Optional) 2x COM (1x RS232/422/485, 1x RS232)
Audio 1x 3.5mm Audio combo jack
Speaker & MIC Dual stero speakers 8Ω/2W & dual MIC
Escaneo de datos NFC 13.56MHz, support ISO/IEC 14443A/14443B/15693/18092/Mifare
RFID UHF RFID, supports PR9200
Barcode Reader 1D, 2D barcode reader
Fingerprint Windows Hello
Teclado/Botón Botón
  • 1x Power button
  • 1x Volume+ & 1x Volume-
  • 1x Windows key
  • P1~ P4 function keys
Mecánica / Entorno Dimension 316 x 204 x 20 mm (12.44” x 8.03” x 0.79”)
Weight 1.55 kg (3.42 lbs)
Power Input AC:100-240V 50/60Hz 1.5A max
Battery Dual battery, hot-swappable, 7.7V, 58Whr
Vibration MIL-STD-810H Method 514.8 Procedure I
Shock MIL-STD-810H Method 516.8 Procedure IV
IP Protection IP66
Operating Temperature -20 to 60°C (-4 to 140°F)
Storage Temperature -30 to 70°C (-22 to 158°F)
Relative Humidity 95% @40°C (104°F), non-condensing
Certification (EMC) CE/FCC
OS Windows 10 / Windows 11
Función RF Wi-Fi 802.11a/b/g/n/ac, support 6GHz
Bluetooth Bluetooth 5.3
GNSS GPS, GLONASS, BeiDou
Cellular
  • WCDMA: B1/B2/B4/B5/B6/B8/B19
  • FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B66/B71
  • TDD: B34/B38/B39/B40/B41/B42/B43/B48
SIM 1x Nano SIM slot
