PQAI-11XE-71


Compact System with Qualcomm® Dragonwing™ IQ-X SoC for Edge AI Applications

Características

  • Powered by Qualcomm® Dragonwing™ IQ-X SoC, delivering up to 45 TOPS of AI performance for edge AI, industrial automation, and AIoT applications
  • Built on Qualcomm AI Engine, enabling efficient on-device AI inference with low latency and optimized power efficiency for always-on edge computing
  • Supports 1x M.2 2230 E-Key, 1x M.2 3052 B-Key, 1x M.2 2280 M-Key and UFS
  • Supporting -40°C to 60°C wide temperature
  • Support Windows on ARM (WOA) and Linux
Model PQAI-11XE-71
Sys Form Factor Proprietary
General
Processor IQ-X7181, 12-core Qualcomm® Oryon™ @ 3.4 GHz
Memory Support up to 32GB LPDDR5 on board
Storage 1 x M.2 Key-M NVMe PCIe x4 2242/2280
1 x uSD
1 x UFS(option)

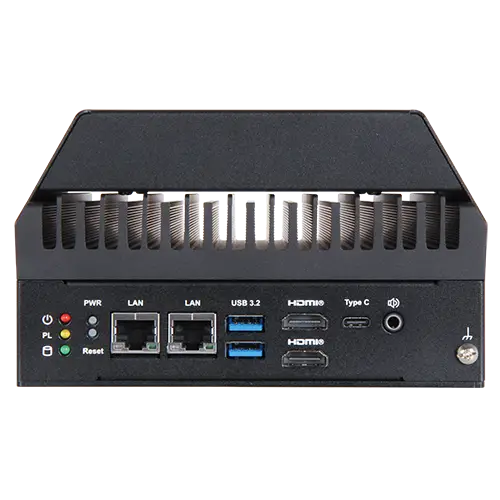

System I/O
Audio 1 x Audio Jack Line-out , Mic-in
Ethernet 2 x 1 GbE LAN

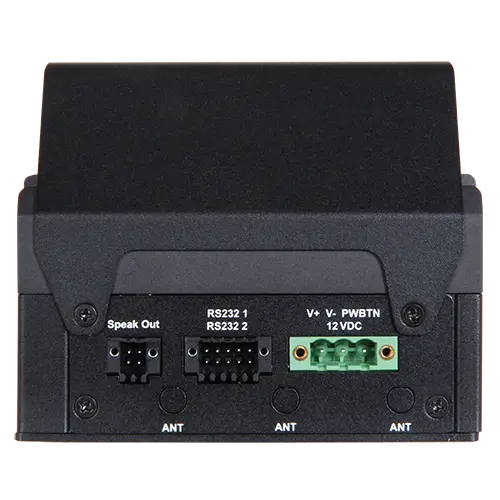

Serial Port 2 x Terminal Block Support RS-232
USB 2 x USB 3.2 Gen2 x1 (10Gbps) Type A
1 x USB 4.0 Type C with DP ALT mode
Display 2 x HDMI® 2.1
1 x DP 2.1 colay with USB3.2 Gen2x1 Type-C
Other Power Button, Reset Button
LED Power, Storage, Programmable LED
Antenna 6 x SMA Antenna holes for LTE / 5G / Wi-Fi
SIM Slots 1 x Nano-SIM
Expansion I/O
M.2 1 x B Key w/ 3052
1 x E Key w/ 2230
ME/Environment
Dimension (WxDxH) 152 x 112 x 92 mm (5.98″ x 4.41″ x 3.62″ )
Weight 1.7 kg
Power Supply Terminal Block 12V
Mounting Wall Mount, DIN Rail Mount, VESA Mount (75*75)
Vibration 1G 5~500Hz with Wall mount (IEC/EN 60068-2-6)
0.5G 5~500Hz with Din rail (IEC/EN 60068-2-6)
Shock 30G 11m sec with Wall mount (IEC/EN 60068-2-27)
Operating Temperature
-40 ~ 60 °C (-40.0 ~ 140.0 °F)


Storage Temperature -40 ~ 85 °C (-40.0 ~ 185.0 °F)
Cooling System 1 x Fan
Relative Humidity 5% to 95%, non-condensing
Certification CE/FCC/UKCA Class B
OS Windows on ARM, Linux™
Portwell Special Feature PET
