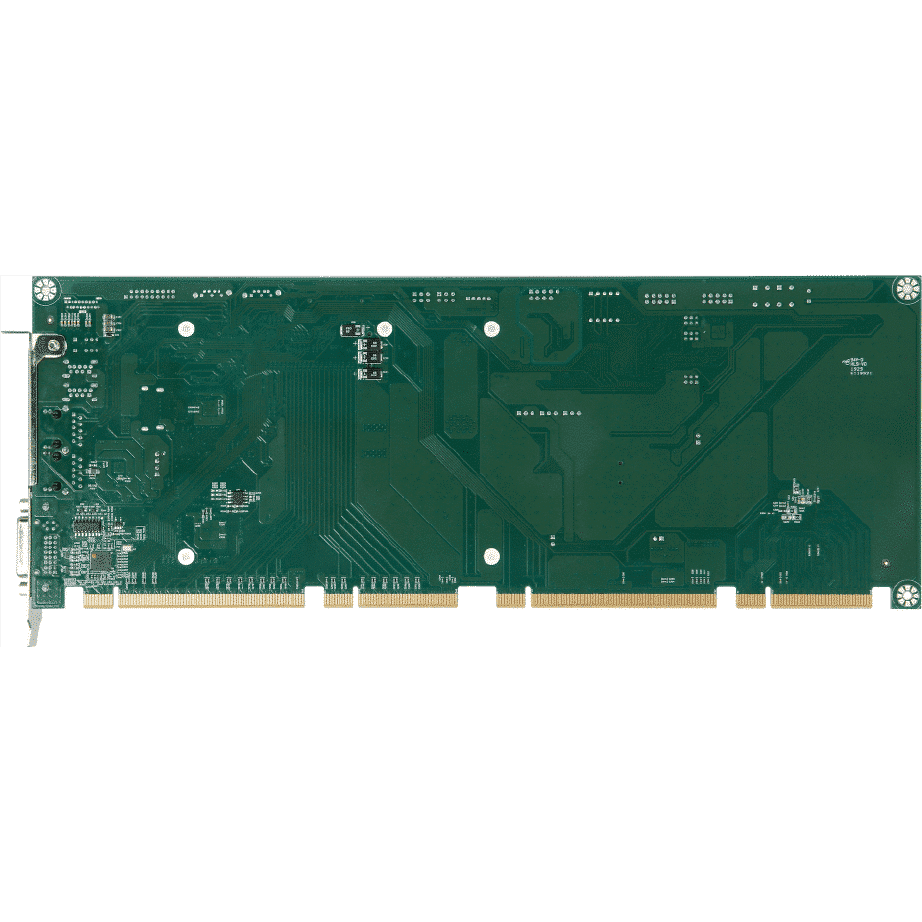

Portwell PCOM-C615 is designed with PICMG 1.3 form factor with COM Express Type VI row connectors, suitable for evaluation testing of Portwell’s Type VI COM Express modules on PCIe, PEG, VGA/HDMI®, DVI, USB and SATA interface.
| Model Name | PCOM-C615 |
| Form Factor (mm) | PICMG 1.3 (338.5 x 126.39mm) |
| COM Type | Depends on Module |
| CPU/ Clock/ Cache | Depends on Module |
| PCI Express | 4x PCIe x1 or 1x PCIe x4 by different bios support (PCIe Gen3) |
| Ethernet | 2x GbE |
| Sound | N/A |
| Graphic Controller | N/A |
| Carrier Board | N/A |
| Product | Ordering P/N | Status |
|---|---|---|
| PCOM-C615 | ABI-3J53 | Available |
