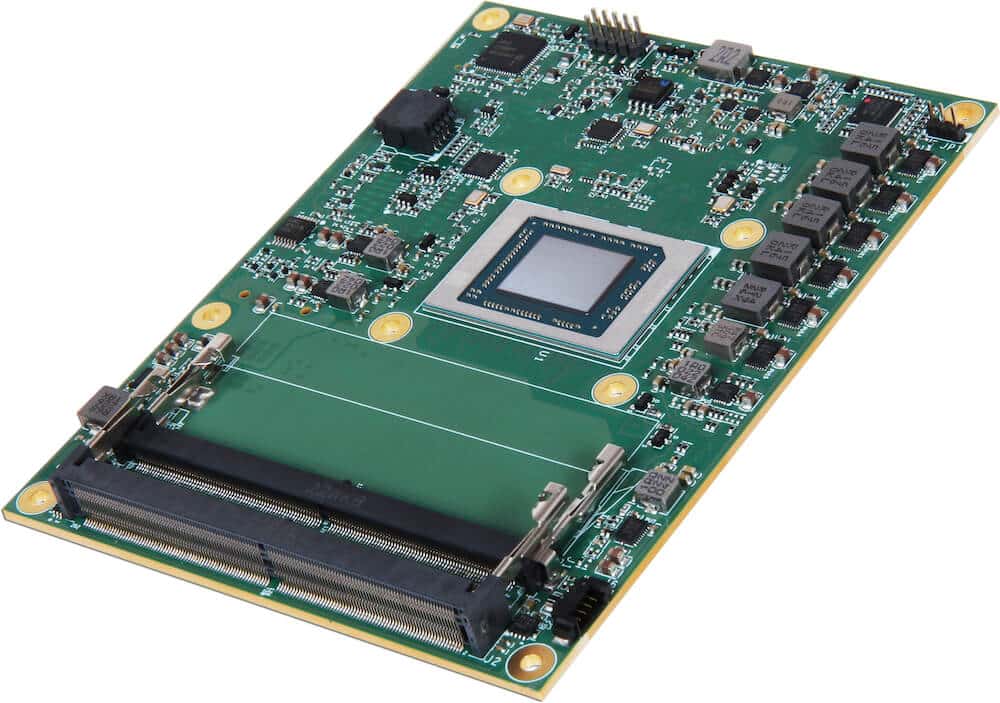

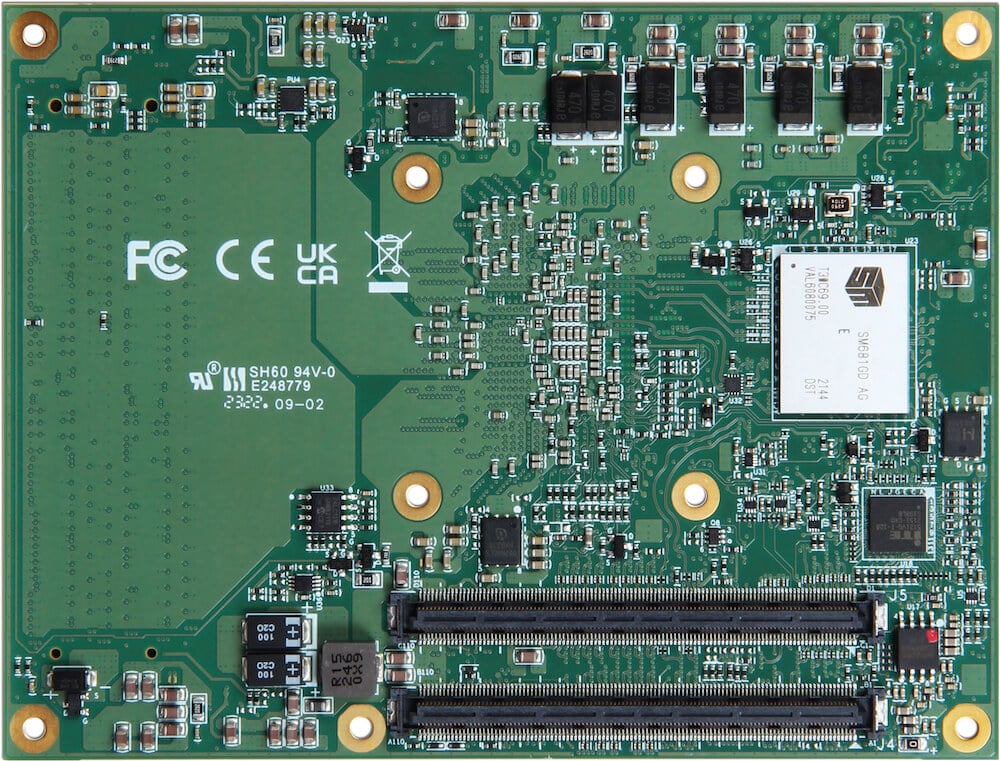

PCOM-B706GT

COM-Express^® Type 7 Basic module with AMD^® Embedded Ryzen™ V3000 CPU Family equipped on-module NVME SSD

Características

AMD^® Embedded Ryzen™ V3000 CPU featuring «Zen 3» core
2x DDR5 4800 MT/s SO-DIMM, 2x 10G KR/SFI port ( support SFP+ and RJ45 with external PHY)
10W ~ 54W cTDP with -40 ~ 85 °C support on selected SKU
Up to 16x PCIe Gen 4 lanes for high speed interconnection
Optional on-module PCIe x2 NVME storage

PCOM-B706GT is a Type 7 COM Express^® basic size (125mm x 95mm) module based on the AMD^® Embedded Ryzen™ V3000 CPU family. It provides up to 8 cores and 16 threads processors with cTDP from 10W to 54W, and 2x 10G KR/SFI ports which can support both SFP+ and RJ45 (via external PHY). The module delivers PCIe Gen4 lanes with a 16.0 GT/s transfer rate to meet the demands of throughput on different applications. The PCOM-B706GT offers 16x PCIe lanes, 4x USB 3.2 Gen2, and 2x SATA III ports, fully compliant with COM Express Type 7 specifications. Additionally, it integrates an on-module high-speed SSD storage chip for compact embedded systems with security requirements. A selected SKU (V3C18I) supports a wide temperature range while maintaining powerful computing performance with 8 cores / 16 threads, making it ideal for critical edge applications. The PCOM-B706GT provides a seamless upgrade path for compute-intensive tasks such as software-defined networking, edge computing, automation, military, and transportation systems.

General
Product	PCOM-B706GT
Form Factor	Type 7, Basic Form Factor COM-Express^® ( 125 x 95 mm)
Processor	AMD^® Embedded Ryzen V3000 CPU
Processor	V3C14	V3C16	V3C18	V3C18I	V3C44	V3C48
Core / Thread Count	4C / 8T	6C / 12T	8C / 16T	8C / 16T	4C / 8T	8C / 16T
Base Frequency	2.3 GHz	2.0 GHz	1.9 GHz	1.9 GHz	3.5 GHz	3.3 GHz
1T Boost Frequency	3.8 GHz	3.8 GHz	3.8 GHz	3.8 GHz	3.8 GHz	3.8 GHz
L2 Cache	2 MB	3 MB	4 MB	4 MB	2 MB	4 MB
L3 Cache	8 MB	16 MB	16 MB	16 MB	8 MB	16 MB
Ethernet	2x 10G KR 1x GbE LAN
Nominal TDP (W)	15 W	15 W	15 W	15 W	45 W	45 W
cTDP (W)	10 ~ 25 W	10 ~ 25 W	10 ~ 25 W	10 ~ 25 W	35 ~ 54 W	35 ~ 54 W
BIOS	AMI BIOS
Memory	2x DDR5 SO-DIMM Up to 4800 MT/s
Temperature Range	0 ~ 60 °C	0 ~ 60 °C	0 ~ 60 °C	-40 ~ 85 °C	0 ~ 60 °C	0 ~ 60 °C

I/O INTERFACE
SATA / Storage	2x SATA III or 1x on-module PCIe x2 NVME (Optional)
USB	4x USB 2.0 4x USB 3.2 Gen2
Ethernet	2x 10G KR/SFI (Support SFP+ and RJ45 with external PHY)
Serial I/O	GPIO	8 GPIO
	I²C	Baud Rate: 400KHz
	SMBus	Baud Rate: 100KHz
	UART	2 Serial Port (Tx/Rx)
PCI Express	1x PCIe x8 or 2x PCIe x4, Max PCIe Gen 4 [PCIe #16 ~ #23] 1x PCIe x4 + 3x PCIe x1 or 2x PCIe x2 + 3x PCIe x1, w/ on-module GbE LAN [PCIe #0 ~ #7] 1x PCIe x8 or 1x PCIe x4 + 4x PCIe x1 or 2x PCIe x2 + 4x PCIe x1, w/o on-module GbE LAN [PCIe #0 ~ #7]
Security	TPM 2.0

MECHANICAL & ENVIRONMENT
Dimension	125mm x 95 mm
Power	DC IN 12v ±5%
Storage	-40°C to 80°C
Operating Temperature	0°C to 60°C (Selected SKU -40°C to 85 °C)
Certification Temperature	Contact us
MTBF	TBD
Vibration	TBD
OS	Linux Ubuntu 20.04.3 LTS / Yocto

Ordering Guide
Product	Ordering P/N	Status
PCOM-B706GT-V3C48	AB1-3R17Z	In design
PCOM-B706GT-V3C44	AB1-3R15Z	In design
PCOM-B706GT-V3C18I	AB1-3R19Z	In design
PCOM-B706GT-V3C18	AB1-3R18Z	In design
PCOM-B706GT-V3C16	AB1-3R16Z	In design
PCOM-B706GT-V3C14	AB1-3R14Z	In design

Accessory
Accessory	Ordering P/N	Status
Cooler	TBD	In design
Heat Sink	TBD	In design
Heat Spreader	TBD	In design
