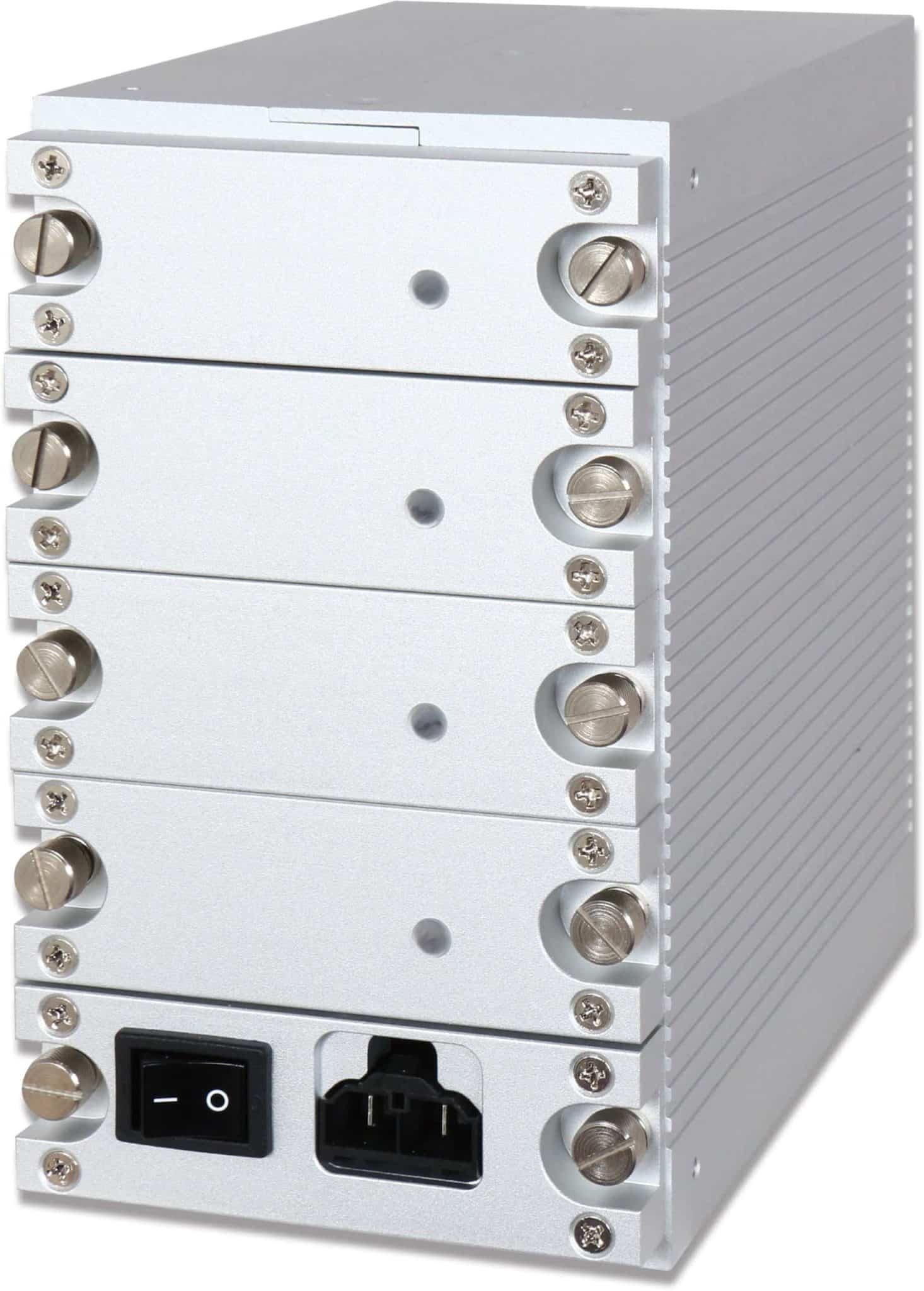

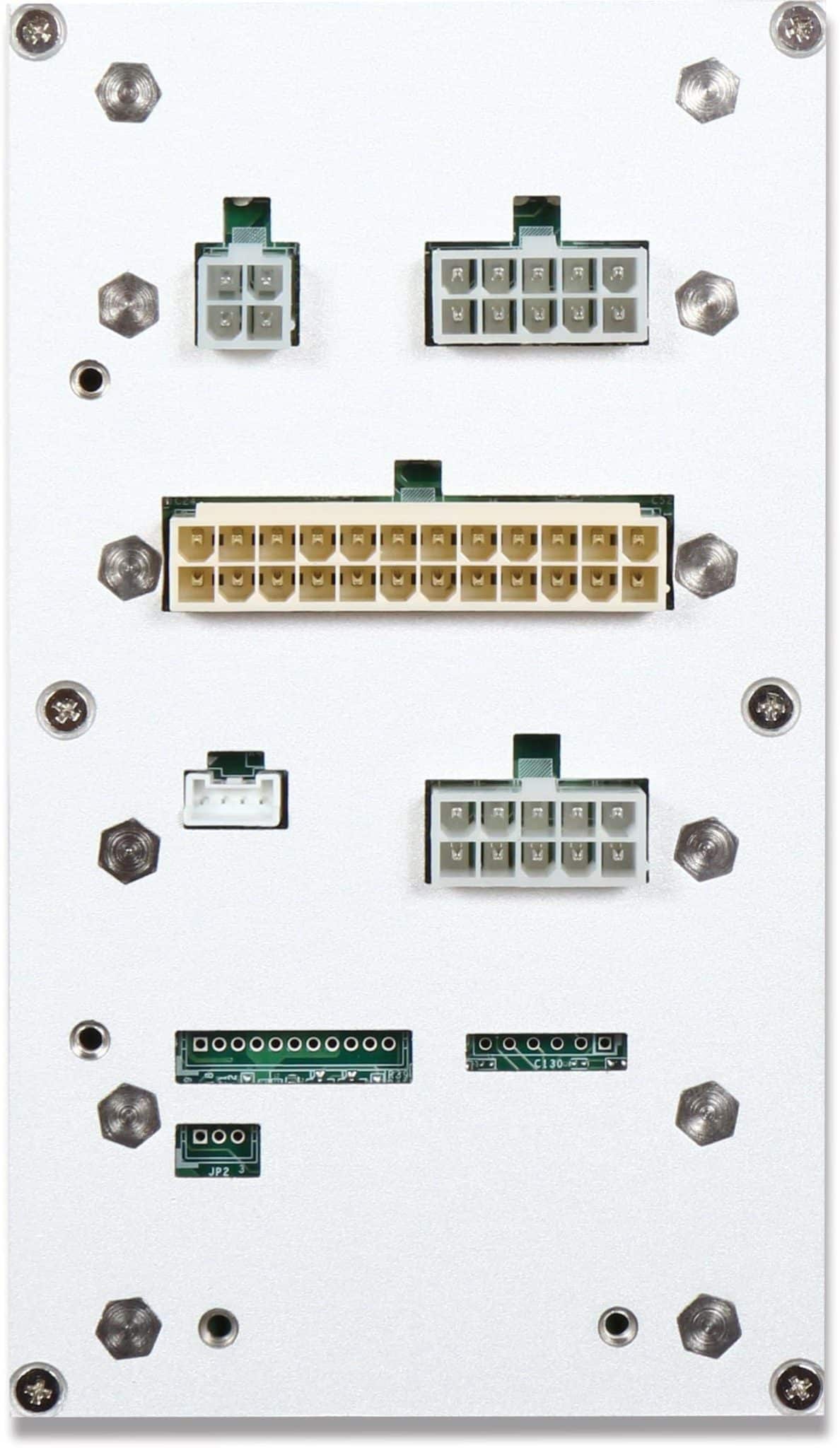

GADIWA-N2480 480W DC-DC PS/2 mini redundant is an innovation stage to Portwell. It’s not only a design of fan-less but also with 3+1 modules in PS/2 size. GADIWA-N2480 provides MCU and LED alarm design to help you monitor system status and installation; it also provides connector cus tomization to meet any critical application.
GADIWA-N2480 is made & tested by automatic production line; therefore, can provide high quality and performance.
| Input Voltage | 17.6A ~ 23.5A |
| Input Current | 120Watts / 160 Watts Peak |
| Efficiency | 85% |
| Over Voltage Protection | [email protected]; [email protected]; [email protected] |
| Temperature/ Humidity |
Operating: 0 ~ 45°C, 20 ~ 90%RH Storage:-20 ~ 60°C, 5 ~ 95%RH |
| Dimension (WxDxH) | 150 x 150 x 86 mm |
| GADIWA-N2480 480W Fan-less PS/2 Redundant DC-DC PSU, 19.2V~28.8VDC Input, ATX Output |
