ANS-8A62/64P

Compact System with Intel® Atom® C3758(8C)/ C3558(4C) Processor for SD-WAN solution

Características

  • Intel® Atom™® C3758(8C)/ C3558(4C) Processor (Denverton)

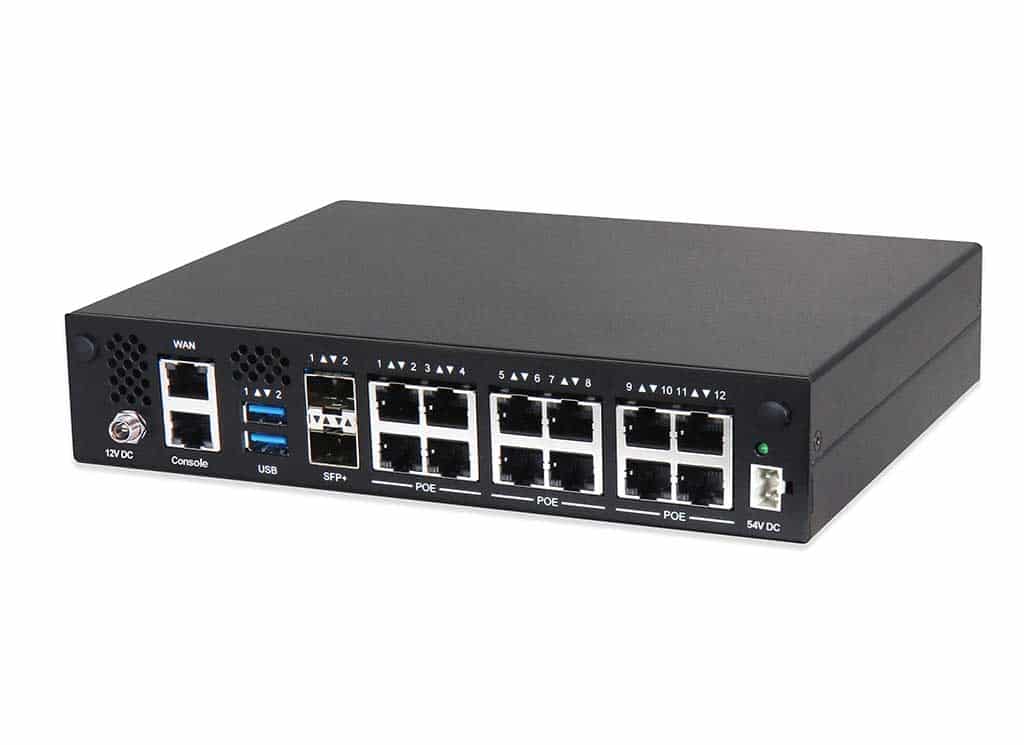

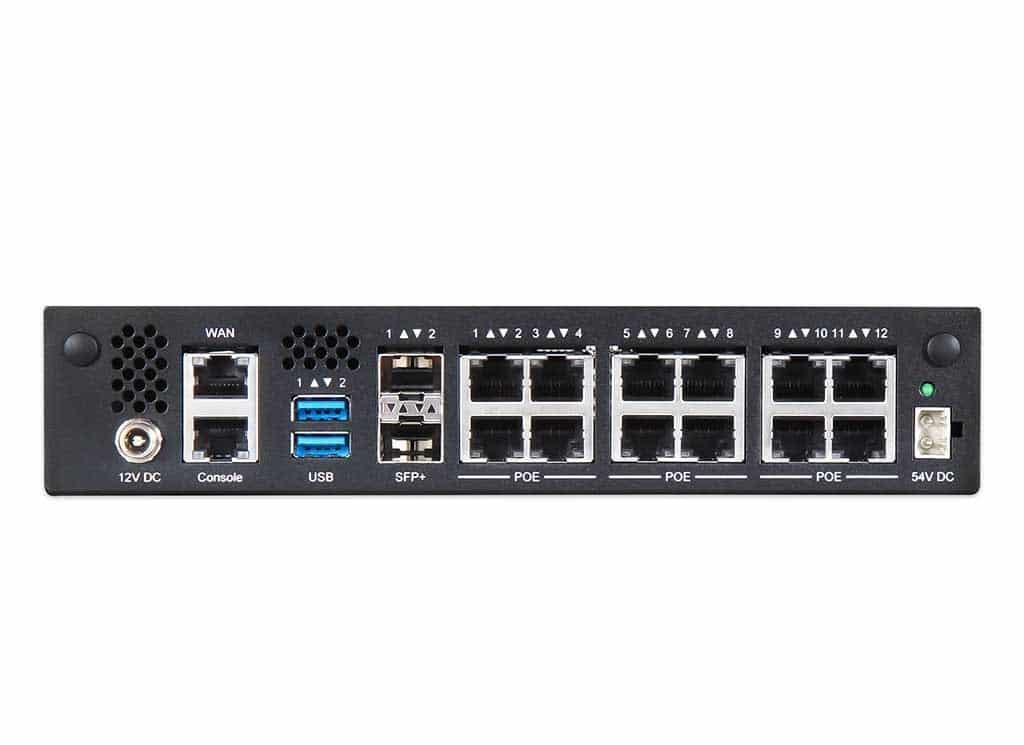

  • 2x 10Gb SFP+, 1x GbE RJ45, 12x GbE RJ45 (with PoE+ support by SKU)
  • 1x RJ45 Console, 2x USB3.0
  • 2 x DDR4 2400/2133 MT/s ECC SO-DIMM up to 32GB
  • 1x TPM2.0(on-board)
  • 1x Mini-PCIe(PCIe/ USB2.0), 1x M.2 Key-B Slot(PCIe/ USB3.0), 1x SATADOM
  • Design ready for 5G and WiFi 6 (802.11ax)
  • Compact design 2 in 1U rackmount



AS1-3306 (R). ANS-8A62. C3558 4-core. 12x GbE LAN, 2x SFP+
AS1-3304 (R). ANS-8A62P. C3558 4-core. 12x GbE LAN, 2x SFP+, PoE+(PoE Adapter is required)
AS1-3305 (R). ANS-8A64. C3758 8-core. 12x GbE LAN, 2x SFP+
AS1-3303 (R). ANS-8A64P. C3758 8-core. 12x GbE LAN, 2x SFP+, PoE+(PoE Adapter is required)
